Matte ceramic balls for optical scanners, high-precision ceramic standard balls

Technical parameters

Ceramic standard balls are made of wear-resistant ceramic materials and are available in a variety of diameters:

4mm, 5mm, 6mm, 8mm, 9.52mm, 10mm, 12mm, 14mm, 15mm, 17mm, 20mm, 25mm, 25.4mm, 30mm, 35mm, 38.1mm, 40mm, 50.8mm, 100mm

Matte ball roundness：0.4~3μm

Feature description

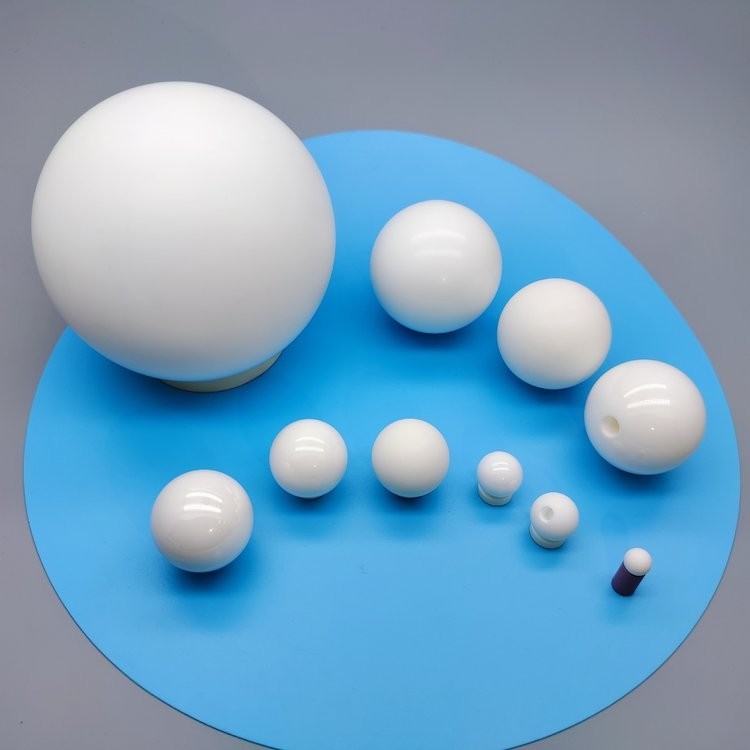

Common styles are as follows:

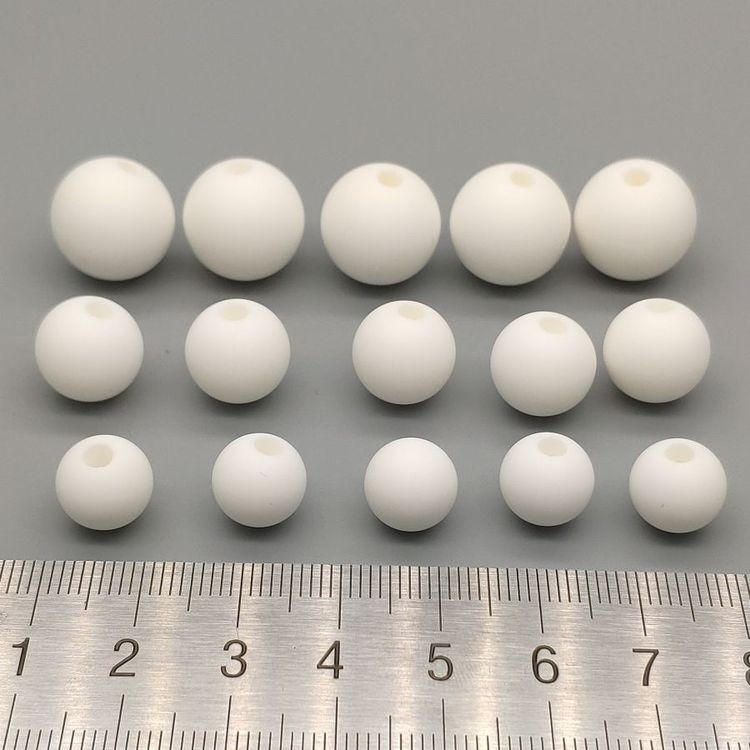

One standard ball, bare ball without holes

One standard ball, with holes

One standard ball + ball rod (customizable)

Instructions for use

Matte balls are suitable for non-contact optical measurement of three-coordinate and imager.

The diameter of the standard ball is between 4mm and 50.8mm.
